Blowers and Compressors Combination 380V 3 Phrase Compressor 250W Air Blower

FOB Price

US $7000.01 - 10 piece

US $5000.011 - 20 piece

US $2500.021 - 50 piece

group name: Screw blower

Min Order: 1 piece

brand name: Jinjing Professional Air Compressor Manufacturer

model: SB

Nearest port for product export: Tianjin, Shanghai, Dalian

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash

update time: Thu, 21 Nov 2024 20:11:49 GMT

contact supplier

Paramtents

Power 15-200 Kw
Displacement 6-100 M3/Min
OEM Accept

Packging & Delivery

Min Order1 piece

Briefing

Blowers and Compressors Combination 380V 3 Phrase 250W Air Blowe Fan for Single Screw Barrel Extrusion Machine

Detailed

_Advantage

Screw air blower belongs to displacement blower, it is widely used in sewage treatment, desulfurization and oxidation, pneumatic conveying, and other fields. In the aeration field, the screw air blower can automatically adjust its pressure according to the change of water depth while maintaining a stable flow rate, which is suitable for medium&small air volume needs and harsh environment working conditions. With the characteristics of a wide working pressure adjustment range, strong dust resistance, high efficiency, stability that can start-stop frequently, and high-cost performance, the screw air blower is the most economical blower for the reform of the Roots Blower. Blowers and Compressors

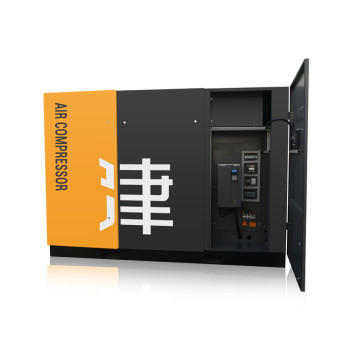

The screw air blower adopts a dry-type twin-screw oil-free compressor airend, which is composed of a high-efficiency motor, gearbox, air intake filter, silencer, cooler and intelligent control system. It can realize local and remote control. The integrated box structure is convenient for installation and maintenance.

Intelligent Control

*Real-time obtain the operation information

*Monitor power consumption and loading/unloading characteristics

*Reset-able the parameters according to the demand of air management

*Display and view the preset status of each parameter

*Check history records and display maintenance warning

Model	Pressure (mpa)	Displacement (m³/min)	Power (kw)	Dimension (mm)	Outlet Size
SB-0.4/15	0.4	11.9	15	200011101500	DN150
SB-0.8/15	0.8	8.6		200011101500	DN150
SB-1.2/15	1.2	6.0		200011101500	DN150
SB-0.4/22	0.4	25.0	22	275016901800	DN150
SB-0.6/22	0.6	18.0		275016901800	DN150
SB-0.8/22	0.8	16.5		275016901800	DN150
SB-0.4/30	0.4	31.5	30	275016901800	DN150
SB-0.8/30	0.8	22.5		275016901800	DN150
SB-1.0/30	1.0	16.5		275016901800	DN150
SB-0.4/37	0.4	40.0	37	246013401820	DN200
SB-0.8/37	0.8	26.5		246013401820	DN150
SB-1.2/37	1.2	19.0		275016901800	DN150
SB-1.5/37	1.5	16.0		275016901800	DN150
SB-0.4/45	0.4	48.5	45	275016901800	DN150
SB-0.8/45	0.8	31.5		275016901800	DN150
SB-1.2/45	1.2	23.8		275016901800	DN150
SB-1.5/45	1.5	20.5		275016901800	DN150
SB-0.4/55	0.4	60.0	55	275016901800	DN200
SB-0.8/55	0.8	40.0		275016901800	DN200
SB-1.2/55	1.2	30.5		275016901800	DN200
SB-1.5/55	1.5	25.5		275016901800	DN200
SB-0.4/75	0.4	78.0	75	310017752200	DN300
SB-0.8/75	0.8	56.0		310017752200	DN200
SB-1.2/75	1.2	42.0		275016901800	DN200
SB-1.5/75	1.5	32.0		275016901800	DN200
SB-0.4/75	0.4	95.0	90	310017752200	DN300
SB-0.8/75	0.8	67.0		310017752200	DN300
SB-1.2/75	1.2	50.0		310017752200	DN200
SB-1.5/75	1.5	43.0		310017752200	DN300
SB-0.4/110	0.4	108.0	110	310017752200	DN300
SB-0.8/110	0.8	83.0		310017752200	DN300
SB-1.0/110	1.0	77.0		310017752200	DN300
SB-1.2/110	1.2	61.5		310017752200	DN200
SB-1.5/110	1.5	50.0		310017752200	DN200
SB-0.8/132	0.8	100.0	132	310017752200	DN300
SB-1.0/132	1.0	89.0		310017752200	DN300
SB-1.2/132	1.2	76.0		310017752200	DN300
SB-1.5/132	1.5	60.0		310017752200	DN200
SB-1.0/160	1.0	100.0	160	310017752200	DN300
SB-1.2/160	1.2	98.0		310017752200	DN300
SB-1.5/160	1.5	76.0		310017752200	DN300
SB-1.5/185	1.5	88.0	185	310017752200	DN300
SB-1.5/200	1.5	98.0	200	310017752200	DN300
